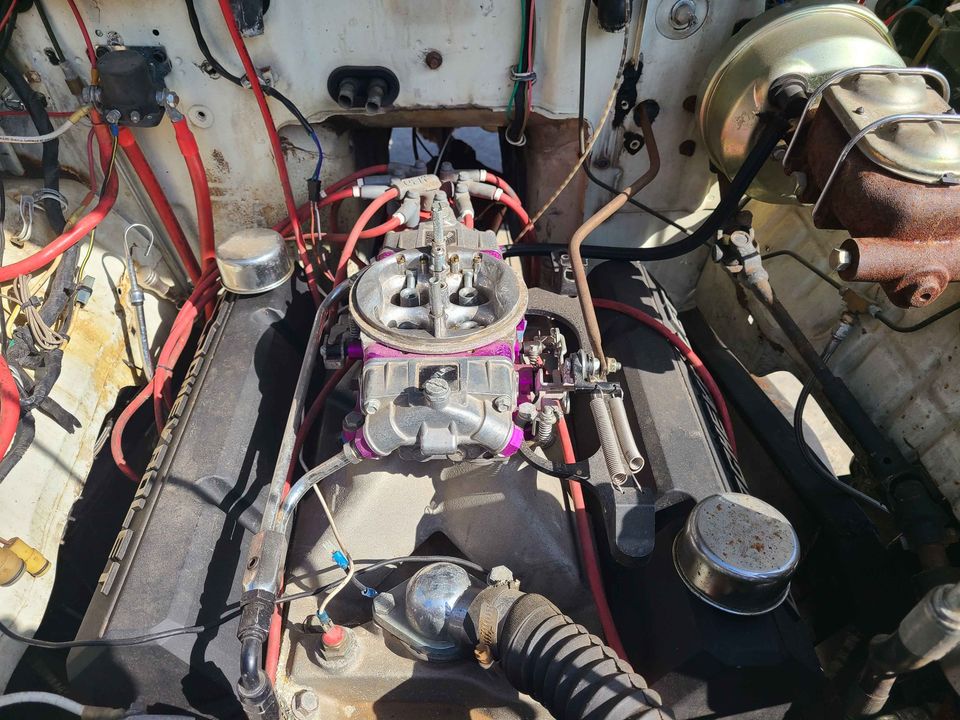

This 1984 Suzuki Samurai has come a long way since it had a 1.3L 4-cylinder engine. It’s now powered by a 650 horsepower Chevy 434 CID stroker V8 which equates to 7.1L. Imagine going from 63 horsepower to 650 horsepower?!

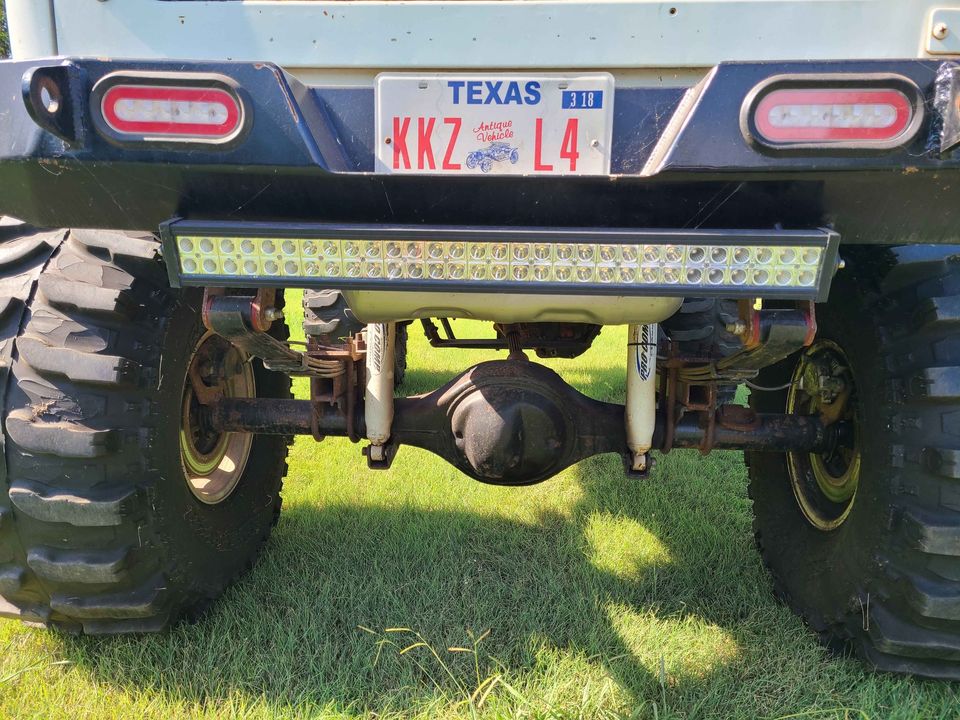

The power is fed through a Powerglide automatic transmission to a divorced NP205 transfer which splits the power to a Dana 44 front axle and Ford 9-Inch rear. The 9-inch rear uses a Mark Williams 3rd member with 35-spline axle shafts and a spool. The Dana 44 front uses heavy duty axles and a locker. The axle upgrades were necessary to handle the power going to the 19x35x15 TSL Boggers on Mickey Thompson aluminum wheels. Rancho shocks help smooth out the ride. A hydraulic steering setup helps steer those big tires.

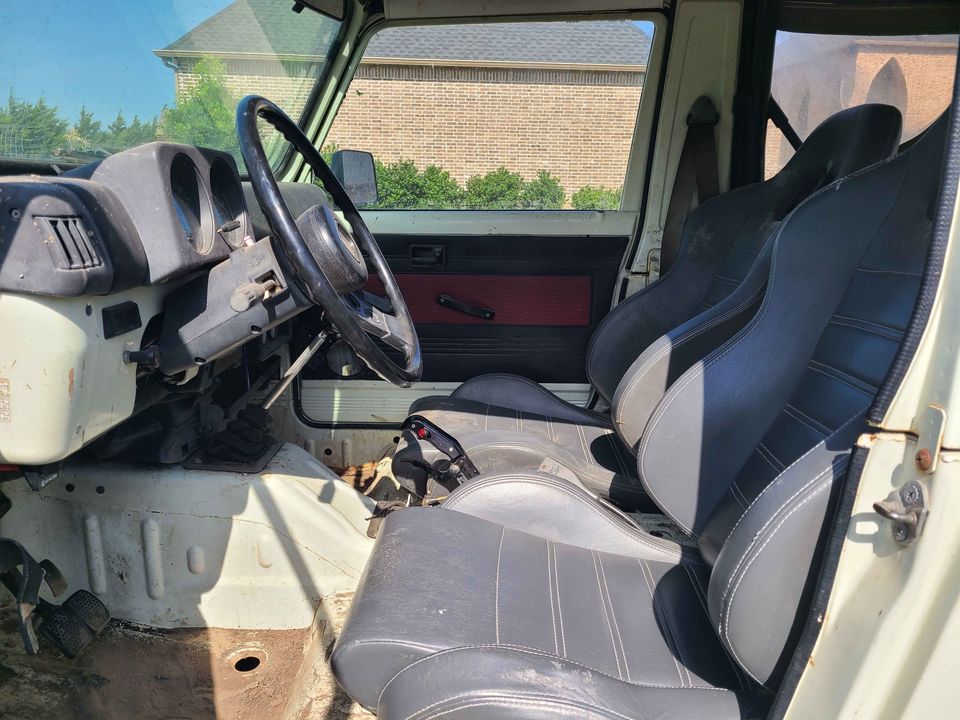

On the inside you’ll find custom aftermarket bucket seats and a B&M Pro Stick shifter.

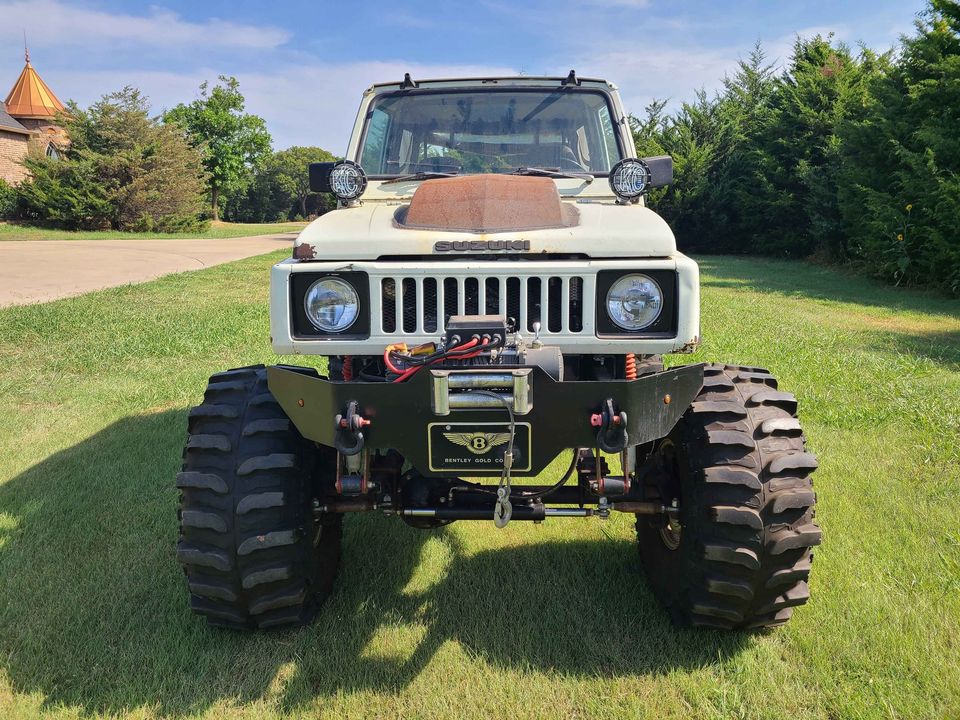

A custom bumper on the front is home to a massive 12k winch, and a pair of KC Hilites help light the way
Specifications:
- 1984 Suzuki Samurai
- Chevy 434 Stroker V8 (650 Horsepower)
- Steel Crank
- Solid Lifter Camshaft
- 64cc Double Hump Heads
- 2.02in 1.60ex Stainless Valves
- 850cfm Quick Fuel Carb
- MSD 6AL Ignition
- Shorty Powerglide With 1.80 Straight Cut Gearset
- TCI Trans Brake
- Deep Aluminum Pan
- 3200 RPM Converter
- B&M Pro Stick Shifter With Reverse Lock Out
- Divorced NP205 Transfer Case With Aftermarket Gearset
- Narrowed Ford 9-Inch Rear Axle
- Mark Williams 3RD Member
- 35-Spline Axles
- Spool
- Disc Brakes On All 4-Corners
- Dana 44 Front Axle
- Front Locker
- Heavy Duty Axles
- Hydraulic Steering
- Custom Frame
- Aluminum Radiator In The Rear
- Aluminum Transmission Cooler
- Electric Fans
- 12K Winch
- Custom Bumpers
- KC Hilites
- 19x35x15 TSL Boggers
- Mickey Thompson Aluminum Wheels
- Rancho Shocks
- Custom Aftermarket Bucket Seats
