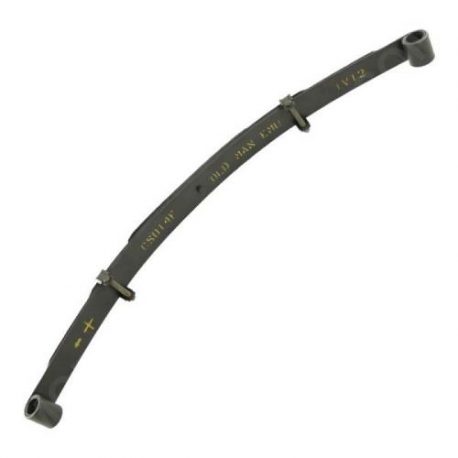

Old Man Emu CS012FA 1.25 Inch Lift Front Leaf Spring (Single)

Old Man Emu Suzuki Front Leaf Springs – Medium / Heavy Load (55-200 Lbs)

Fits: 1986-1995 Suzuki Samurai

Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu shocks will deliver vastly improved ride, handling and load carrying capability.

Product Features:

Draw Tapered & Diamond Cut Leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.

Bolt Clamps & Liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.

Fully Scragged & Load Tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.

Graphite Coating: To further reduce the friction between the spring leaves & friction pads.

Military Wrap: Designed to provide added safety.

Anti Friction Pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.

Flat Axle Seat Area: Allows a positive, safe axle mount reducing spring stress & increasing spring life.

Shot Peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.

Two-stage Leaf Pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
