Dimensions 2-Door
(1989-1998)
|
Dimensions 4-Door
(1996-1998) |
| Wheelbase |
86.6 Inches |
97.6 Inches |
| Overall Length |
| 142.5 Inches (1989-1995) |
| 143.7 Inches (1996-1998) |
|
158.7 Inches |
| Overall Width |
64.2 Inches |
64.4 Inches |
| Overall Height |
| 65 Inches (1989-1991) |
| 65.6 Inches (1992-1993) |
| 65.1 Inches (1994-1998) |
|
66.5 Inches |
| Curb Weight |
| 2,365 lbs (4WD Convertible) |
| 2,387 lbs (4WD Hardtop) |
|
2,434 lbs |
| Cargo Volume |
32.9 cu. ft. |
45.9 cu. ft. |
|
|
|
| Fuel Capacity |
11.10 Gallons |
14.50 Gallons |
| Engine Oil With Filter |
4.5 Quarts |
Same |
| Engine Coolant |
5.5 Quarts |
Same |
| Transmission Fluid (Manual) |
3.2 Quarts (80W-90) |
Same |
| Transmission Fluid (Automatic) |
2.6 Quarts (Initial Fill) (Dexron III) |
Same |
| Transfer Case Fluid |
4.0 Pints |
Same |
| Differential Gear Oil (Front) |
1.2 Pints |
Same |
| Differential Gear Oil (Rear) |
4.6 Pints |
Same |
| Engines |
Engine 1.6L SOHC |
Engine 1.6L 16-Valve |
| Models Used |
The 1.6L 8-Valve was used in the 1989-1995 Trackers. In 1995, the 4WD Tracker got the 1.6L 16-Valve. The 2WD Tracker got the 1.6L 16-Valve in 1996 |
The 1.6L 16-Valve was used in the 1996 and newer 4-door Trackers. It was used in the 1995 and newer 4WD Tracker and all Trackers starting in 1996. The 1994 NY and CA spec 2-door received the 1.6L 16-Valve |
| Type |
1.6L 8-Valve SOHC Inline 4-Cylinder |
1.6L 16-Valve DOHC 4-Cylinder |
| Block |
Aluminum |
Aluminum |
| Bore x Stroke |
2.95 in. x 3.54 in. |
2.95 in. x 3.54 in. |
| Displacement |
1.6L |
1.6L |
| Compression Ratio |
8.9:1 |
8.9:1 |

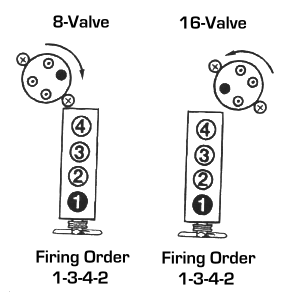

| Firing Order |
1-3-4-2 (Clockwise) |
1-3-4-2 (Counter Clockwise) |
| Spark Plug |
| NGK 7734 (Standard) Gap .032 |
| NGK 1233 (V-Power) Gap .032 |
| Autolite AP64 (Platinum) Gap .042 |
| Champion 404 (Copper Plus) Gap .044 |
| Champion 3405 (Platinum Power) Gap .044 |
|
| NGK 6364 (Standard) Gap .032 |
| NGK 6962 (V-Power) Gap .032 |
| Autolite AP3923 (Platinum) Gap .042 |
| Champion 71 (Copper Plus) Gap .044 |
| Champion 3071 (Platinum Power) Gap .044 |
|
| Induction |
Electronic Fuel Injection |
Electronic Fuel Injection |
| Horsepower |
80 hp @ 5400 rpm |
95 hp |
| Torque |
94 lb. ft. @ 3300 rpm |
|
| Mileage (City / Highway) (Manual) |
25 mpg / 27 mpg |
|
| Mileage (City / Highway) (Automatic) |
23 mpg / 24 mpg |
|
|
Transmissions (1989-1996)
|
|
| Type – Manual |
5-Speed Manual All Syncromesh |
Same |
| Type – Automatic |
GM Turbo-Hydramatic 180 3-Speed |
Same |
| Gear Ratio (Manual) |
| 1st – 3.65 |
| 2nd – 1.95 |
| 3rd – 1.38 |
| 4th – 1.00 |
| 5th – 0.86 |
| Reverse – 3.67 |
|
Same |
| Gear Ratio (Automatic) |
| 1st – 2.40 |
| 2nd – 1.47 |
| 3rd – 1.00 |
| Reverse – 2.00 |
|
Same |
|
Transmissions (1997-2004) |
|
| Type – Automatic |
GM 41 (4L30-E) (Electronically Controlled) |
Same |
| Gear Ratio |
| 1st – 2.86 |
| 2nd – 1.62 |
| 3rd – 1.00 |
| 4th – 0.723 |
|
Same |
|
Transfer Case |
|
| Type |
Manual |
Same |
| Ratios |
1.82 (Low) 1.00 (High) |
Same |
|
Axles
|
|
| Rear Ring Gear Size |
6.9 Inch Solid Axle |
Same |
| Rear Axle Spline Count |
26 Spline |
Same |
| Axle Gear Ratio (Manuals) |
5.12 |
Same |
| Axle Gear Ratio (Automatics) |
4.62 |
Same |
|
Brakes |
|
| Front |
Disc (11.42 x .39 Inches) |
Same |
| Rear |
Drum (8.66 x 1.34 Inches) |
Same |
|
Wheels |
|
| O.E. Wheel Size |
15×6 |
Same |
| Bolt Pattern |
| 5×139.7 (Metric) |
| 5×5.5 (Standard) |
|
Same |
| Stud Size |
12×1.25 |
Same |
| Hub Center Bore |
108 |
Same |
|
Suspension |
|
| Front |
Strut With Arm Mounted Coil Springs |
Same |
| Rear |
Solid Axle With Trailing Arms & Coil Springs |
Same |
